Name: Stormwater Mains

Display Field: StreamName

Type: Feature Layer

Geometry Type: esriGeometryPolyline

Description:

Copyright Text:

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 1.1861226119840384E7
YMin: 6987426.870114565
XMax: 1.1898131069980472E7
YMax: 7025747.760008067
Spatial Reference: 102746  (2283)

Drawing Info:

Renderer:
Unique Value Renderer:
Field 1: PipeType
Field 2: N/A
Field 3: N/A
Field Delimiter: ,
Default Symbol:
N/A
Default Label: N/A
UniqueValueInfos:
• Value:
  Label: Pipe
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [76, 230, 0, 255]
  Width: 1
• Value: Circular Pipe
  Label: Pipe
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [76, 230, 0, 255]
  Width: 1
• Value: Elliptical Pipe
  Label: Pipe
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [76, 230, 0, 255]
  Width: 1
• Value: Other
  Label: Pipe
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [76, 230, 0, 255]
  Width: 1
• Value: Pipe
  Label: Pipe
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [76, 230, 0, 255]
  Width: 1
• Value: Service Lateral
  Label: Pipe
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [76, 230, 0, 255]
  Width: 1
• Value: Underdrain
  Label: Pipe
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [76, 230, 0, 255]
  Width: 1
• Value: Arch Culvert
  Label: Culvert
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [255, 170, 0, 255]
  Width: 1
• Value: Box Culvert
  Label: Culvert
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [255, 170, 0, 255]
  Width: 1
• Value: Ditch
  Label: Drainage (Not Piped)
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [137, 112, 68, 255]
  Width: 1
• Value: Open Channel
  Label: Drainage (Not Piped)
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [137, 112, 68, 255]
  Width: 1
• Value: Open Drainage
  Label: Drainage (Not Piped)
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [137, 112, 68, 255]
  Width: 1
• Value: Stream Channel
  Label: Stream Channel
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [115, 178, 255, 255]
  Width: 1
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: true
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• ID ( type: esriFieldTypeString, alias: ID, length: 50 )
• Status ( type: esriFieldTypeString, alias: Status, length: 50 )
• Jurisdiction ( type: esriFieldTypeString, alias: Jurisdiction, length: 50 )
• PipeMaterial ( type: esriFieldTypeString, alias: PipeMaterial, length: 50 )
• Watershed ( type: esriFieldTypeString, alias: Watershed, length: 50 )
• WidthInches ( type: esriFieldTypeDouble, alias: WidthInches )
• HeightInches ( type: esriFieldTypeDouble, alias: HeightInches )
• DepthInches ( type: esriFieldTypeDouble, alias: DepthInches )
• StreamName ( type: esriFieldTypeString, alias: StreamName, length: 50 )
• Stream ( type: esriFieldTypeString, alias: Stream, length: 50 )
• Diameter ( type: esriFieldTypeDouble, alias: Diameter )
• Diameter_unit ( type: esriFieldTypeString, alias: Diameter_unit, length: 10 )
• Length ( type: esriFieldTypeDouble, alias: Length )
• Length_unit ( type: esriFieldTypeString, alias: Length_unit, length: 10 )
• Slope ( type: esriFieldTypeDouble, alias: Slope )
• Slope_unit ( type: esriFieldTypeString, alias: Slope_unit, length: 10 )
• Installed ( type: esriFieldTypeDate, alias: Installed, length: 8 )
• Replaced ( type: esriFieldTypeDate, alias: Replaced, length: 8 )
• Retired ( type: esriFieldTypeDate, alias: Retired, length: 8 )
• PipeType ( type: esriFieldTypeString, alias: PipeType, length: 50 )
• NodeUpStream ( type: esriFieldTypeString, alias: NodeUpStream, length: 50 )
• NodeDownStream ( type: esriFieldTypeString, alias: NodeDownStream, length: 50 )
• OpenData ( type: esriFieldTypeString, alias: OpenData, length: 50 )
• SHAPE ( type: esriFieldTypeGeometry, alias: SHAPE )
• SHAPE.STLength() ( type: esriFieldTypeDouble, alias: SHAPE.STLength() )
• cgGeoSyncDate ( type: esriFieldTypeDate, alias: cgGeoSyncDate, length: 8 )
• GlobalID ( type: esriFieldTypeGlobalID, alias: GlobalID, length: 38 )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

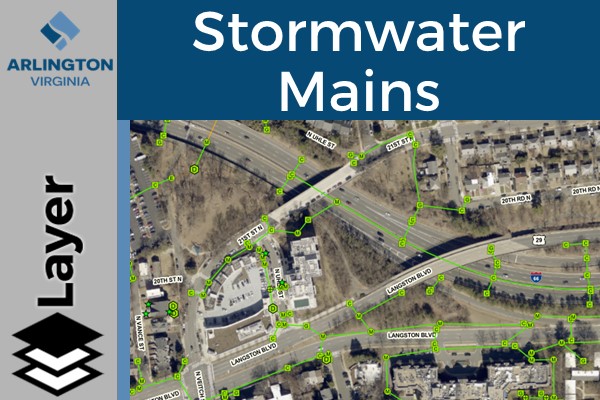

  Iteminfo   Thumbnail   Metadata
